Detailed description of the curtain wall system products
1. Product Overview

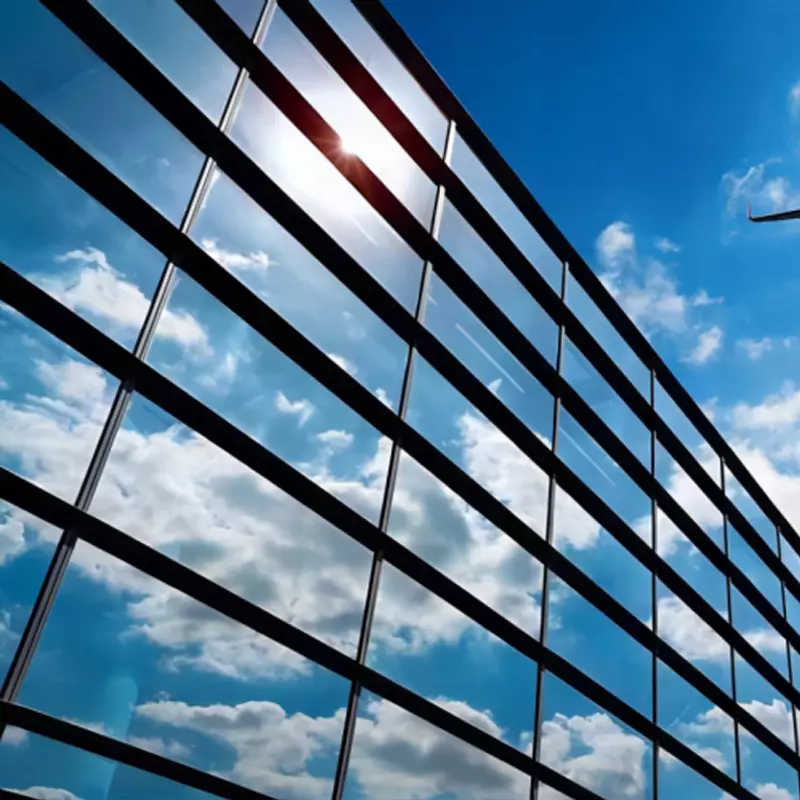

Our curtain wall system is a comprehensive solution for the exterior envelope and aesthetic skin of modern buildings. It is not the load-bearing structure of the building, but a high-performance system that integrates the panels and the supporting frame into one through high-precision engineering. We are dedicated to providing curtain wall products that feature outstanding performance, innovative design and long-lasting durability, covering unitized curtain walls, frame-type curtain walls and special curtain walls, which can meet the demanding requirements of various projects ranging from super high-rise landmark buildings to high-end commercial complexes.
2. Core product series
Unitized curtain wall system
Description: In the factory, panels (such as glass, metal, stone, etc.) are assembled with aluminum frames into complete independent unit panels. After being transported to the site, they are directly hoisted and hung on the main structure.
Advantages: Fast installation speed and short construction period; Factory production, with extremely strict quality control; High air tightness and water tightness grades; It has a strong ability to adapt to the displacement of the main structure and is especially suitable for super high-rise buildings.
Frame-type curtain wall system
Description: On site, the vertical main keel (columns) and the horizontal secondary keel (beams) are first installed on the building structure, and then the panels are fixed one by one onto the frame.
Advantages: Strong design flexibility, suitable for complex-shaped facades; Low transportation cost; Convenient for on-site adjustment and later maintenance and replacement; It is the most widely used classic system.
Point-supported glass curtain wall system
Description: A stainless steel connection system (connection claws) is used to fix a single glass panel in a point-like manner, creating a transparent and frameless visual effect.
Advantages: Excellent architectural aesthetic effect, wide field of vision, and highly modern. The glass structure has strong expressiveness and can achieve large-span design. Suitable for lobbies, skylights and large public buildings.
3. Panel material selection
We offer a wide range of panel materials to support the creation of unique architectural facade expressions
Glass: including energy-saving Low-E insulating glass, safe laminated glass, colorful glazed glass and dynamic photovoltaic glass, etc.
Metal plates: such as lightweight and weather-resistant aluminum single plates, aluminum composite plates with composite insulation, honeycomb aluminum plates with rich texture, and classic stainless steel plates.
Natural stone: Granite and marble hanging panels, providing an eternal and solemn texture.
Artificial boards: high-performance ceramic boards and fiber-reinforced cement boards, providing stable physical and chemical properties.
4. Key performance parameters
Our curtain wall system strictly adheres to Chinese national standards (GB) and international standards (such as ASTM of the United States and EN of Europe), and can pass third-party certification.
Structural performance: The wind pressure resistance grade can reach ≥ level 9, meeting the typhoon resistance requirements of super high-rise buildings and coastal areas.
Sealing performance: Air tightness grade ≥4, water tightness grade ≥6, ensuring that the indoor environment is not disturbed by wind and rain.
Thermal performance: The heat transfer coefficient (U value) can be as low as ≤1.5 W/(m²·K), and when combined with high-performance glass, it significantly reduces building energy consumption.
Acoustic performance: The weighted sound insulation (Rw) can reach up to ≥40 dB, effectively isolating urban traffic noise.
Seismic performance: The design can meet the seismic fortification requirements of 8 degrees and has sufficient adaptability to interstory displacement.
Fire resistance performance: We can provide a complete fireproof curtain wall system to meet the requirements of different fire resistance time limits.
5. Design and Engineering Services
We offer an "integrated solution", providing services throughout the entire project:
Scheme consultation and detailed design: Our design team will carry out structural calculations, node deepening and construction drawing design based on the architect's creativity.
Material selection and optimization: Provide professional material combination suggestions from the perspectives of performance, cost, and aesthetics.
Digital construction: Utilizing BIM (Building Information Modeling) technology for collision detection and pre-assembly simulation to enhance accuracy and reduce on-site errors.
Precision machining: Fully automatic CNC machining centers are used for profile cutting, drilling and milling to ensure millimeter-level accuracy.
Professional installation: Installation is carried out by a project team that has undergone rigorous training and is highly experienced, with full-process quality management implemented.
Testing and verification: Key systems can undergo "performance sample testing" in nationally recognized laboratories to verify the feasibility of the design.
After-sales service: Comprehensive warranty service and lifetime technical support are provided.
6. Application fields
Commercial office buildings & super high-rise landmarks
Hotels, shopping centers & commercial complexes
Large public facilities such as airports, high-speed railway stations and convention and exhibition centers
Cultural venues, museums, schools and other educational and cultural buildings
High-end residential and apartment projects
Guangdong Guoshun Construction Engineering Co., Ltd. is committed to turning every curtain wall project into a model of safe, energy-efficient and aesthetically pleasing buildings. We are not only suppliers of products, but also reliable technical partners.
